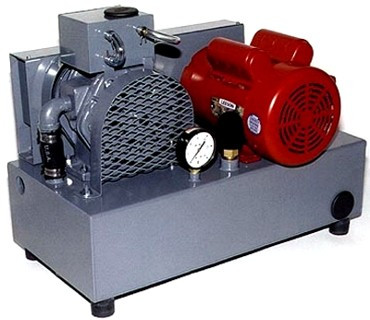

3 HP Vacuum System for small pipeline or bucket milking

Description Compact permanent install vacuum pump. 4 to 6 bucket units or small pipeline. 3 HP 230 volt TEFC motor. Pump capacity 33 CFM @15" Hg Footprint dimensions; 18 inch Width x 32 inch Length x 20.5 inch Height 1-1/2 inch NPT vacuum line connections. Features a Long Life Conde Model 6 pump Designed for smaller milking systems. Unit includes vacuum pump, motor, and built-in reserve tank. This stationary vacuum system is designed for small milking systems. Unit comes with a Conde brand vacuum pump, 2 hp electric motor, vacuum regulator, and vacuum gauge all mounted on a steel vacuum balance tank. The tank helps protect the pump from liquids in case of running over a bucket and levels out the air flow for stable teat end vacuum. Pump comes with a belt guard for safety, oil reservoir and vibration isolator feet. To install: 1. Locate the unit in a convenient place. Best location is in an equipment room with a drain - separate from where you milk. 2. Plumb the pvc vacuum line to the vacuum balance tank. The vacuum line should be 1.5" or larger and looped. Use pipe tees with a plug in one opening instead of using elbows in the furthest corners. This allows for better access for cle
