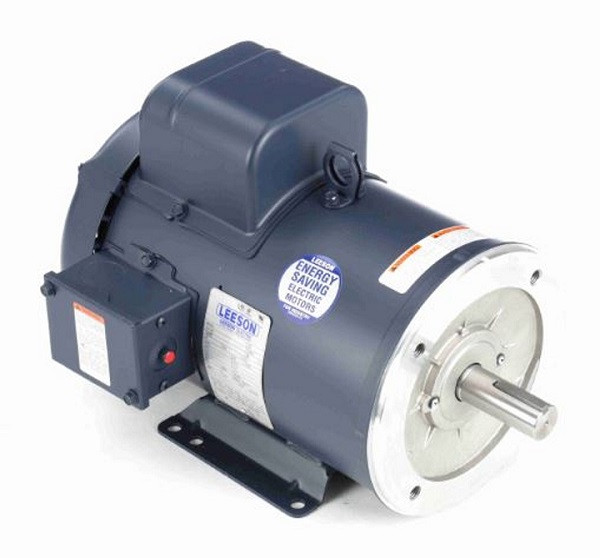

3 HP ELECTRIC MOTOR 230 volt TEFC 184TC

Description 3 HP Electric motor 230 volts Single phase 60 HZ 1.0 service factor Keyed Shaft 1 1/8" Diameter x 2 3/4" length 1800 RPM 33.6/16.8 amps NEMA 184TC Frame Base Mount and C face pump mount. 4 predrilled holes in face overload protection = Manual Reversible Rigid Base Mount Ball Bearings Class F Insulation UL and CSA approved TEFC = Totally Enclosed Fan Cooled. This item ships by LTL freight only. Ships on a pallet on a semi truck. Not UPS Shippable For Transfer pumps, water pumps, vacuum pumps Electric motor has rigid base with C-Face mount. 1 1/8 inch shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. January 2023
