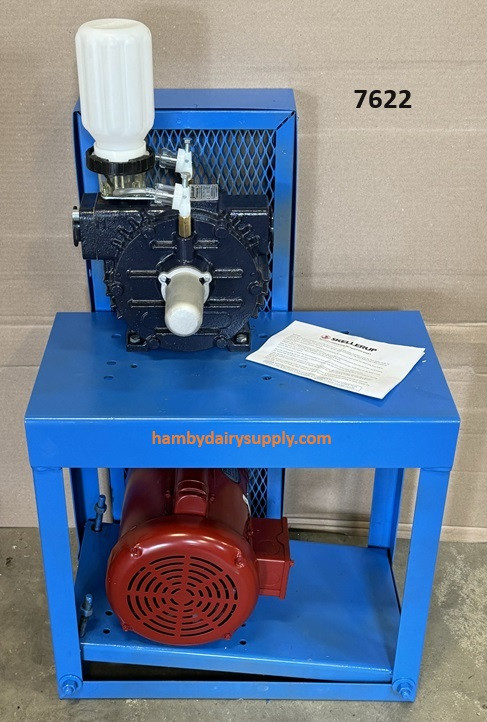

2 HP M2 Stationary Vacuum System for small pipeline or bucket milking

Description Compact permanent install vacuum pump. Milk 4 or 5 bucket units. System Includes; New 2 HP 230 volt TEFC motor New Masport M2 vacuum pump with oiler New V-Belt Used vertical pump stand 1-1/2 inch NPT vacuum line connections. M2 Pump capacity 25-30 CFM @15" Hg M2 Pump RPM recommended from 1200 to 1700 Small Footprint! 17 inch Width x 23 inch Length 40 inch Height Features a Long Life Masport M2 rotary vane vacuum pump Designed for smaller milking systems. Pump comes with a belt guard for safety To install: 1. Locate the unit in a convenient place. Best location is in an equipment room with a drain - separate from where you milk. 2. Plumb the pvc vacuum line to the vacuum balance tank (not included). The vacuum line should be 1.5" or larger and looped. Use pipe tees with a plug in one opening instead of using elbows in the furthest corners. This allows for better access for cleaning and checking air flow. (see drawing in detail images) 3. Install a stall cock on this vacuum line at each place a bucket milker will be operating. Many customers milk two cows or goats at each stall cock. For a small herd of cows, 2 buckets and 4 stanchions or 3 buckets and 6 stanchions is the
